Equipment features of the C|PS² and C|PS³apex particle suction extraction systems
Extraction system
| Equipment features | C|PS² | C|PS³apex *) |
|---|---|---|
| Particle separation in laboratory bottle | ✓ | ✓ |
| Particle separation on particle trap | ✓ | ✓ |
| Adaption for shortened direct analysis in conjunction with PartSens 4.0 (not included) | ✓ | ✓ |
| Direct filtration on analysis filter | ✓ | ✓ |
| Precoat unit / cascade filtration unit | ✓ | ✓ |
| Adaptation for efficient wet cleaning of the system | option | -. |
| Automated wet cleaning with adapter | - | ✓ |
| Ergonomic quick-release clamps for filter unit and hose holders | - | ✓ |
Controls and monitoring
| Equipment feature | C|PS² | C|PS³apex *) |
|---|---|---|
| Differential pressure measurement for volume flow monitoring | ✓ | ✓ |
| Digital control for programming and storing the test sequence | - | ✓ |
| Integrated voice prompting for reliable user guidance | - | ✓ |
| Screen panel with freely movable support arm for optimum positioning of the screen | - | ✓ |
| Integrated volume flow monitoring with direct flow measurement | - | ✓ |
Structural features
| Equipment feature | C|PS² | C|PS³apex *) |
|---|---|---|
| Modular design, dismountable, compact and mobile | ✓ | - |
| Fully integrated complete system, movable for use on site due to braked swivel castors | - | ✓ |
| Complete ESD protection | - | ✓ |
Accessories
| Equipment feature | C|PS² | C|PS³apex *) |
|---|---|---|
| Universal ESD-compliant suction nozzle set with round, flat and round brush nozzle | ✓ | ✓ |
| Flexible accessory module with drawers with accessories for extraction, analysis and cleaning | ✓ | - |
| Integrated ESD-protected drawers with accessories for extraction, analysis and cleaning | - | ✓ |
Suction system
| Equipment feature | C|PS² | C|PS³apex *) |
|---|---|---|
| Bluetooth remote control on suction hose | ✓ | ✓ |
| Mobile suction module with factory-set volume flow | ✓ | - |
| Integrated suction unit, controlled via the digital controller and with monitored volumetric flow | - | ✓ |
*) C|PS³apex is currently available in Europe and USA, availability for other regions on request

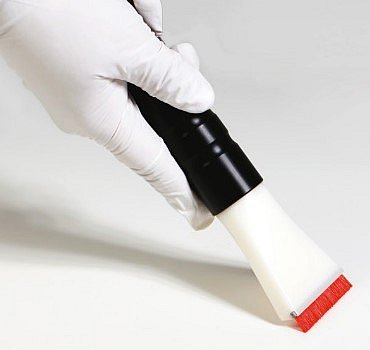

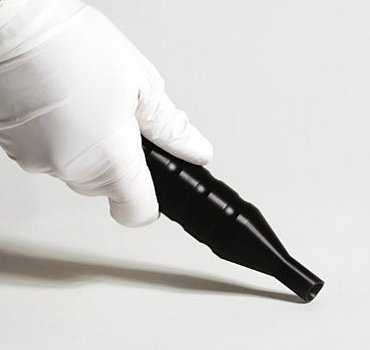

Suction nozzles – universal or component-specific
In addition to the three standard nozzles included in the scope of delivery for the C|PS² and C|PS³apex, ESD-capable and component-specific nozzles and brushes can also be developed and manufactured to requirements. The ESD-compliant use of materials ensures optimum derivation and thus prevents electrostatic discharges on the component during suction extraction. The nozzles are either made of ESD-capable material or are given a special ESD coating.
C|PS - Nozzle Catalog
Customized nozzle variants
Nozzle geometries can be customized to meet specific component requirements on request.
